IP68 Waterproof 1500VDC TUV Solar Panel Connectors Long Type PV Panel Connectors

NSPV 1500VDC PV panel connector
  • NSPV 1500VDC PV panel connector
  • NSPV 1500VDC PV panel connector male
  • NSPV 1500VDC PV panel connector female
  • NSPV 1500VDC PV panel connector
  • NSPV 1500VDC PV panel connector
  • NSPV 1500VDC PV panel connector
  • NSPV 1500VDC PV panel connector
  • NSPV 1500VDC PV panel connector
Model No.︰4PN-15/4PP-15
Brand Name︰NSPV
Country of Origin︰China
Unit Price︰US $ 1.5 / pc
Minimum Order︰500 pc
Share on:

 Total 19 Related Items
Prev1011121314Next

Product Description

1500VDC PV4.0 Solar panel connector_Long type

Feature: Matching MC4/EVO connector; TUV certified; IP68; High voltage; High current; Low contact resistance.

Product Specifications
Insulation material PPE/PA Safety degree II
Rated voltage 1500VDC Flame class UL94-V0
Rated impulse voltage 16KV Connecting system Crimp connection
Test voltage 8KV(50Hz,1min) Ambient temperature range -40℃...+85℃(IEC)
Rated current 35A Suitable cable cross sections 2.5-6mm²/14-10AWG
Degree of protection IP68(1m,1H) Nut cap locking force 0.8-1.0Nm
Overvoltage category/Pollution degree CATIII/2 Upper limiting temperature 110℃(IEC)
Contact resistance ≤0.25mΩ Rated impulse voltage 16KV








Price Terms︰EXW
Payment Terms︰TT
Packing︰Normally 600pairs/box
Lead Time︰3-5 working days
Standards Certificate︰TUV
Product Image

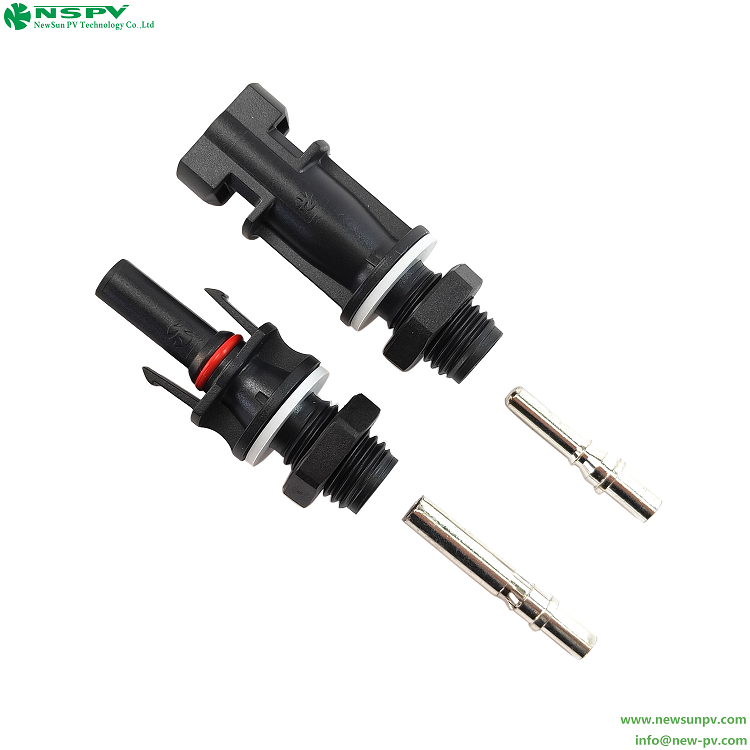

NSPV 1500VDC PV panel connector
NSPV 1500VDC PV panel connector

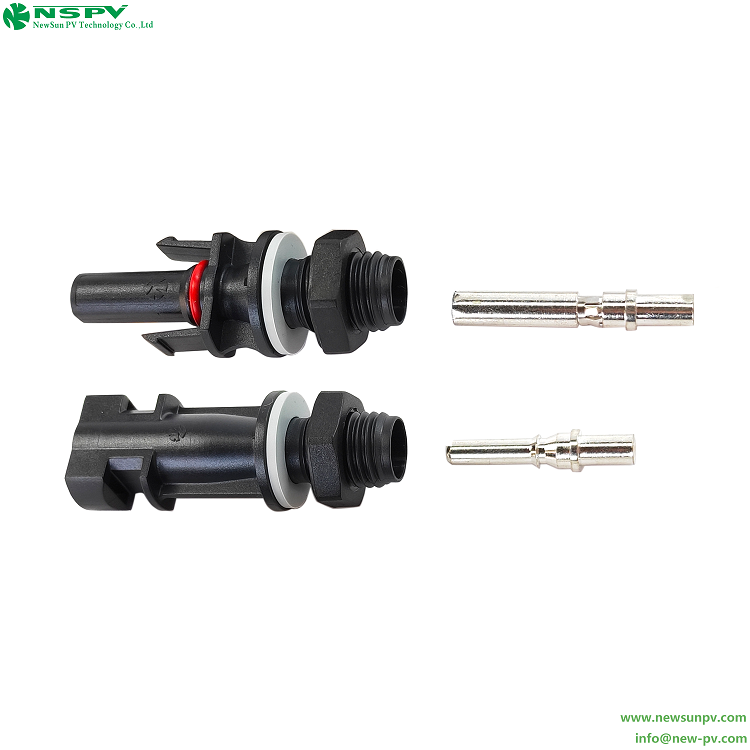

NSPV 1500VDC PV panel connector male
NSPV 1500VDC PV panel connector male

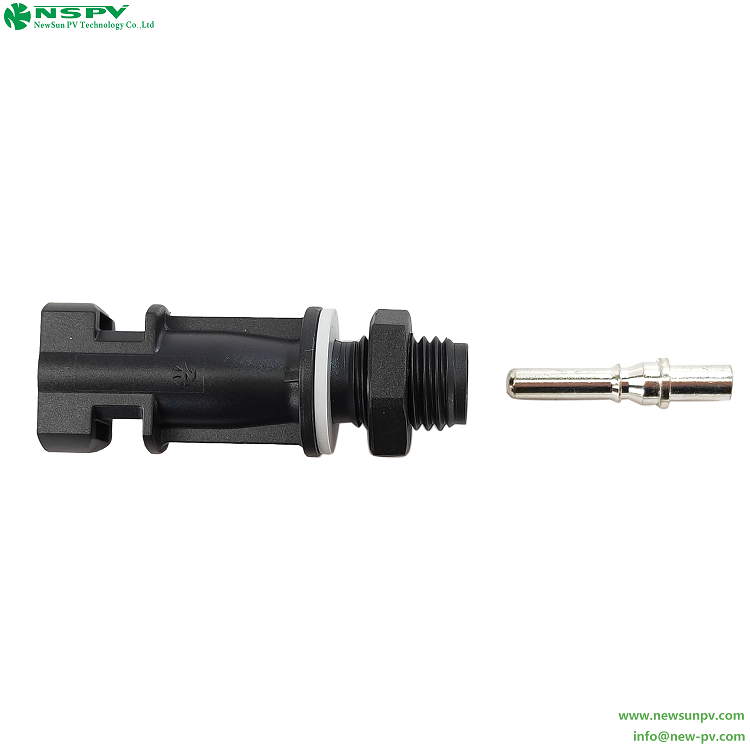

NSPV 1500VDC PV panel connector female
NSPV 1500VDC PV panel connector female

NSPV 1500VDC PV panel connector
NSPV 1500VDC PV panel connector

NSPV 1500VDC PV panel connector
NSPV 1500VDC PV panel connector

NSPV 1500VDC PV panel connector
NSPV 1500VDC PV panel connector

NSPV 1500VDC PV panel connector
NSPV 1500VDC PV panel connector

NSPV 1500VDC PV panel connector
NSPV 1500VDC PV panel connector
