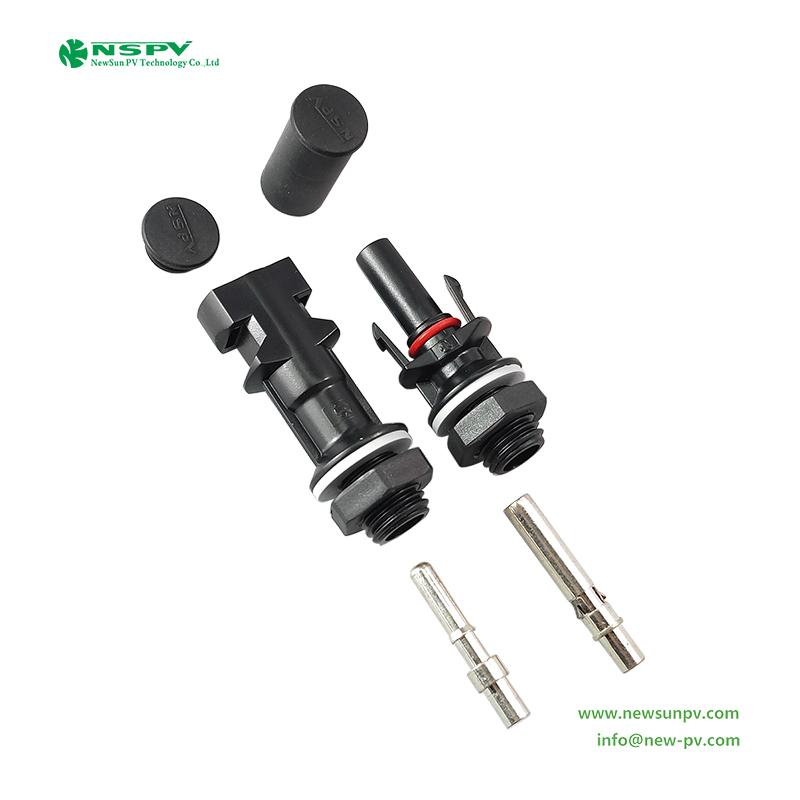

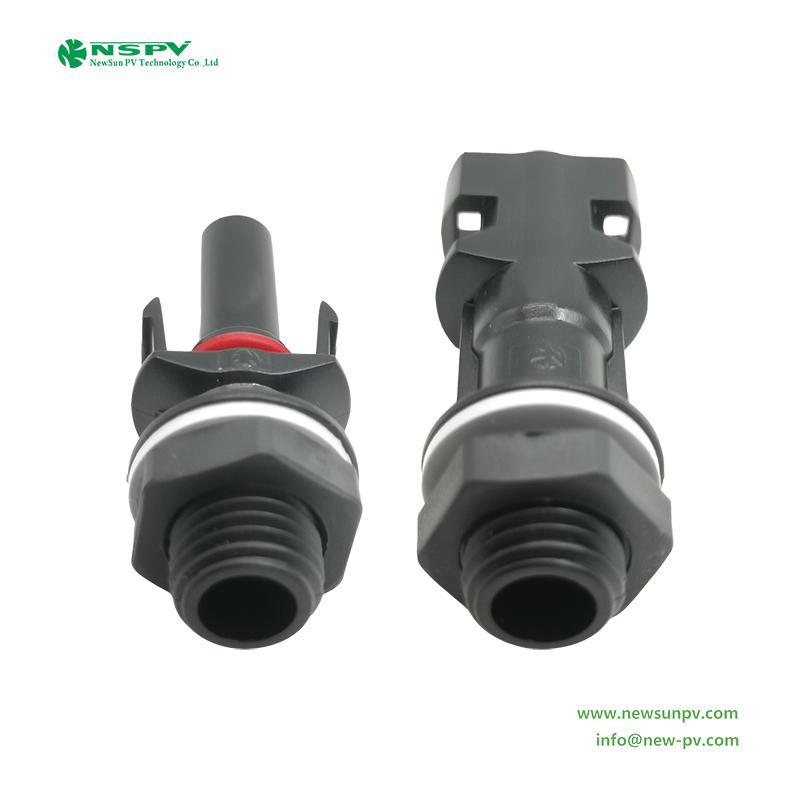

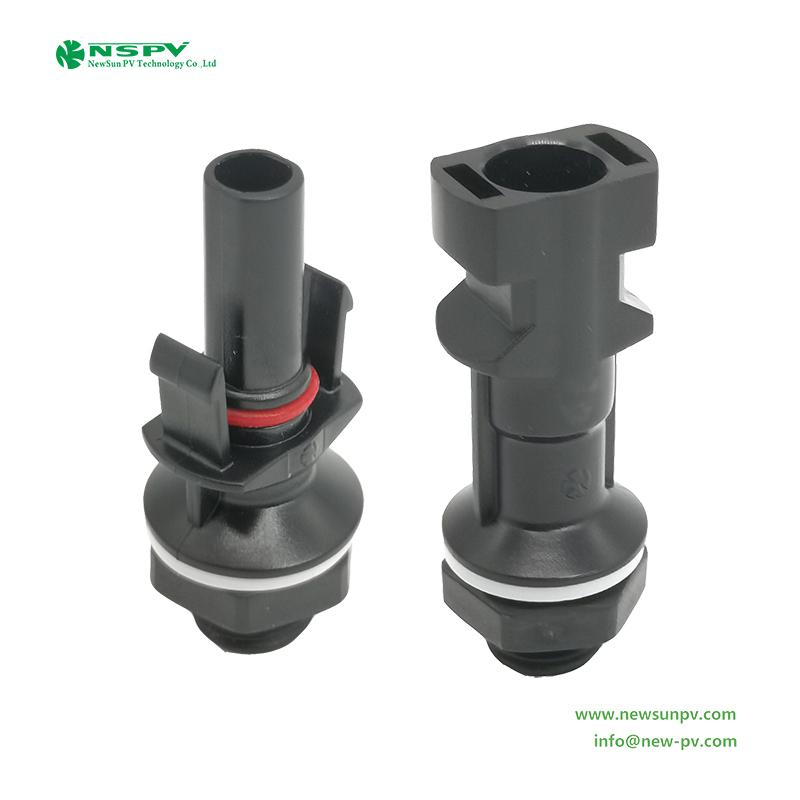

1000VDC PV Panel Connectors IP67 Waterproof Solar Panel Connector

NSPV 1000VDC solar panel connectors
  • NSPV 1000VDC solar panel connectors
  • NSPV 1000VDC solar panel connectors
  • NSPV 1000VDC solar panel connectors
  • NSPV 1000VDC solar panel connectors
  • NSPV 1000VDC solar panel connectors
  • NSPV 1000VDC solar panel connectors
  • NSPV 1000VDC solar panel connectors
  • 1000VDC PV Panel Connectors IP67 Waterproof Solar Panel Connector
Model No.︰4PM/4PF
Brand Name︰NSPV
Country of Origin︰China
Unit Price︰US $ 1.15 / pc
Minimum Order︰500 pc
Share on:

 Total 15 Related Items
Prev7891011Next

Product Description

1000VDC PV4.0 Solar panel connector

Feature: Matching MC4/EVO connector; TUV certified; IP67; Low contact resistance.

Product Specifications
Insulation material PPE/PA Safety degree II
Rated voltage 1000VDC Flame class UL94-V0
Contact resistance ≤0.25mΩ Connecting system Crimp connection
Test voltage 6KV(50Hz,1min) Ambient temperature range -40℃...+85℃(IEC)
Rated current 30A Suitable cable cross sections 2.5-6mm²/14-10AWG
Degree of protection IP67 Nut cap locking force 1.2-1.5Nm
Overvoltage category/Pollution degree CATIII/2 Upper limiting temperature 110℃(IEC)
Contact material Copper, Tin plated Insertion force/Withdrawal force ≤50N / ≥50N








Price Terms︰EXW
Payment Terms︰TT
Packing︰Standard packing
Lead Time︰5-10 working days
Standards Certificate︰TUV
Product Image

NSPV 1000VDC solar panel connectors
NSPV 1000VDC solar panel connectors

NSPV 1000VDC solar panel connectors
NSPV 1000VDC solar panel connectors

NSPV 1000VDC solar panel connectors
NSPV 1000VDC solar panel connectors

NSPV 1000VDC solar panel connectors
NSPV 1000VDC solar panel connectors

NSPV 1000VDC solar panel connectors
NSPV 1000VDC solar panel connectors

NSPV 1000VDC solar panel connectors
NSPV 1000VDC solar panel connectors

NSPV 1000VDC solar panel connectors
NSPV 1000VDC solar panel connectors
