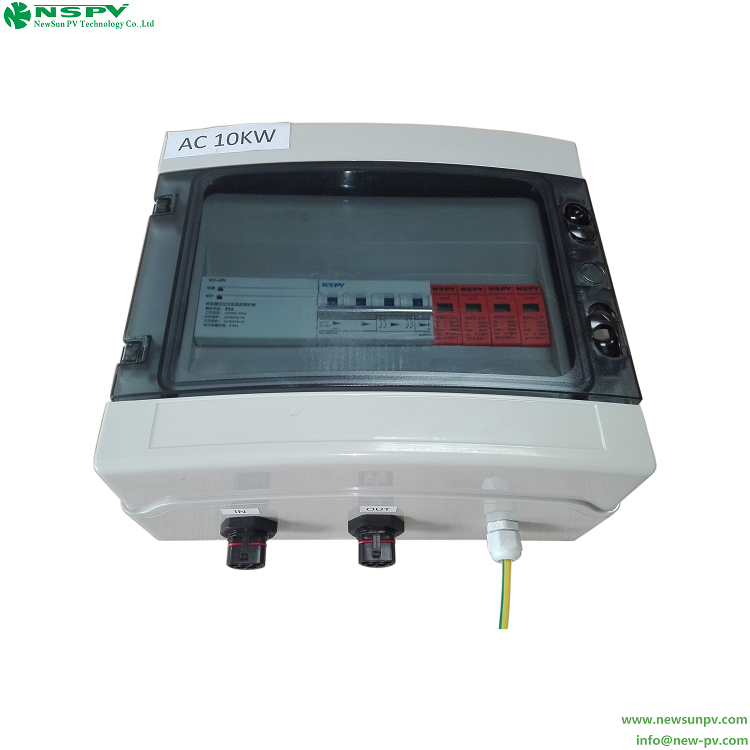

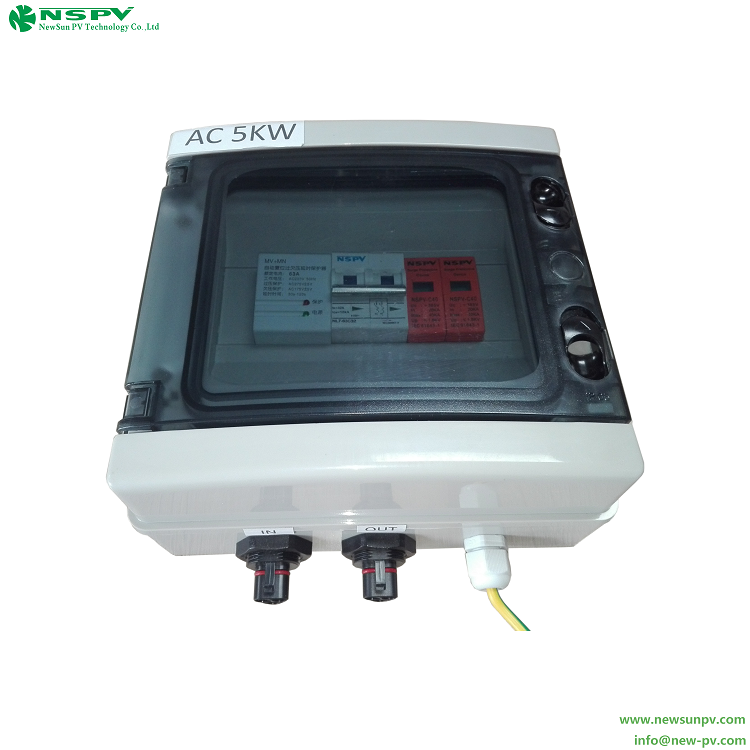

Solar Combiner Box AC PV Combiner Box 2KW 5KW 10KW

NSPV AC solar combiner box
  • NSPV AC solar combiner box
  • NSPV AC solar combiner box
  • NSPV AC solar combiner box
  • NSPV AC solar combiner box
  • NSPV AC solar combiner box
Model No.︰customization
Brand Name︰NSPV
Country of Origin︰China
Unit Price︰US $ 250 / pc
Minimum Order︰50 pc
Share on:

 Total 26 Related Items
Prev12345Next

Product Description

PV Combiner Box 2-4/6-10/11-16 Strings Features:

  • Applicable for outdoor PV systems;
  • Each PV array attached to DC fused protection and anti-reverse protection optional;
  • Wide DC voltage input range with maximum open-circuit voltage up to 1000V;
  • High voltage Lightning protection (SPD) special for PV;
  • PG cable glands connector input, convenient and safe system wiring;
  • PV special high voltage circuit breaker control output;
  • Protection class IP65 for outdoor use;
  • Output Waterproof terminals.

Please inquiry for details and prices.

Material PPO/PC/Matel
Degree of protection IP67/IP65
Exterior Color Black/Off white
Max.open circuit DC voltage 1000VDC
Max.DC short circuit current per input 20A DC/15A DC
Surge protection device 1000V DC 40KA
Number olf DC inputs 2-32
Connection DC input cables(+) to  Fuse hold(0.75mm2-25mm2 )
Connection DC unput cable(-)to Fuse hold(0.75mm2-25mm2  )
Fuses with fuse
Suitable cable cross section 4-150mmsq
Max,output circuit breaker current(A) 63-800A



Price Terms︰EXW
Payment Terms︰TT/Credit Card
Packing︰Standard packing
Lead Time︰25-30 working days
Product Image

NSPV AC solar combiner box
NSPV AC solar combiner box

NSPV AC solar combiner box
NSPV AC solar combiner box

NSPV AC solar combiner box
NSPV AC solar combiner box

NSPV AC solar combiner box
NSPV AC solar combiner box

NSPV AC solar combiner box
NSPV AC solar combiner box
