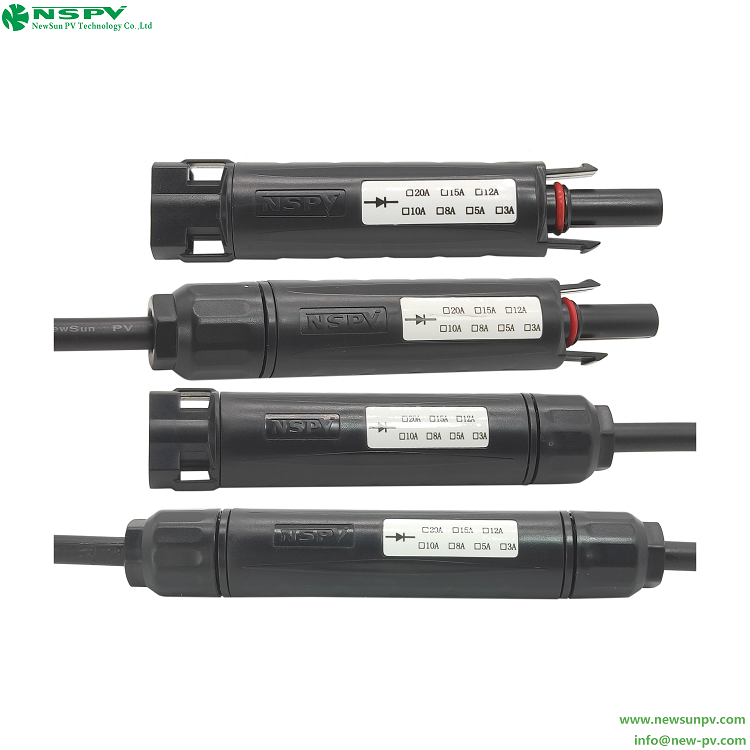

PV 4.0 Solar Blocking Diode Connector 4types
Features; 1000VDC; 10A; IP67; Easy to install
Model: 4D0/4D1/4D2/4D3, Please inquiry for details and each price exclude the fuse.
| Insulation material |
PPE/PA |
| Rated current(Without Diode) |
30A |
| Rated current(With Diode) |
10A(Diode Rated Current 15A) |
| Rated voltage |
1000VDC |
| Test voltage |
6KV(50Hz,Imin) |
| Typical contact resistance |
≤0.25 mΩ |
| Contact material |
Copper,Tin plated |
| Degree of protection |
IP67 |
| Safety degree |
II |
| Flame class |
UL94-V0 |
| Insertion force/Withdrawal force |
≤50N / ≥50N |
| Ambient temperature range |
-40℃...+85℃(IEC) |
| Temperature limits |
110℃(IEC) |
| Connection type |
Crimp connection |
| Nut cap locking force |
1.5-1.8Nm |
