IPC connectors are similar to line taps used for overhead lines, enabling a branch connection to be made to an existing cable without stripping the insulation of the cable, and using a shear head bolt to ensure it is tightened to the correct torque.

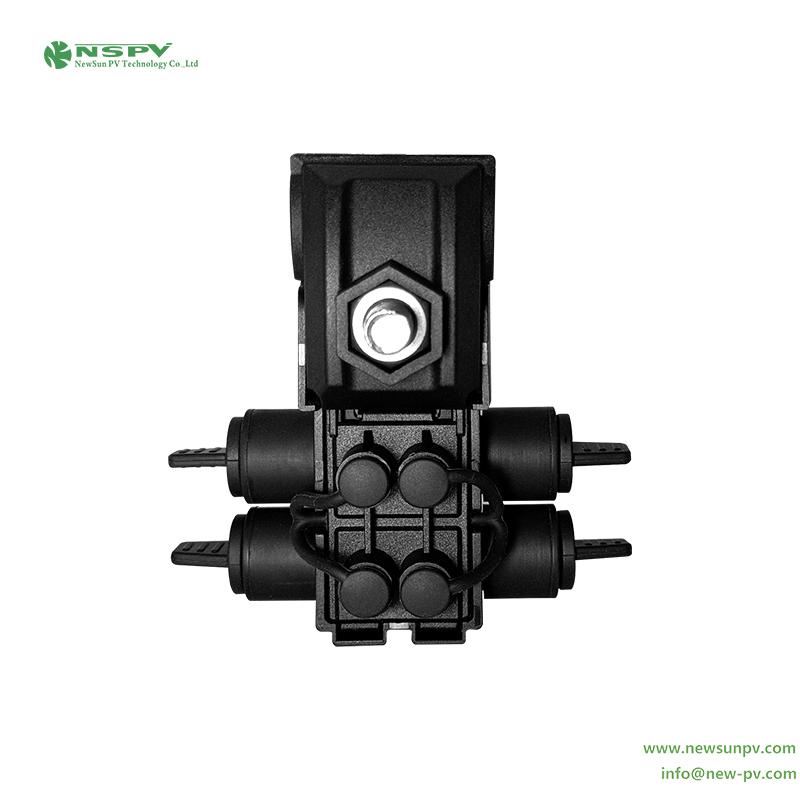

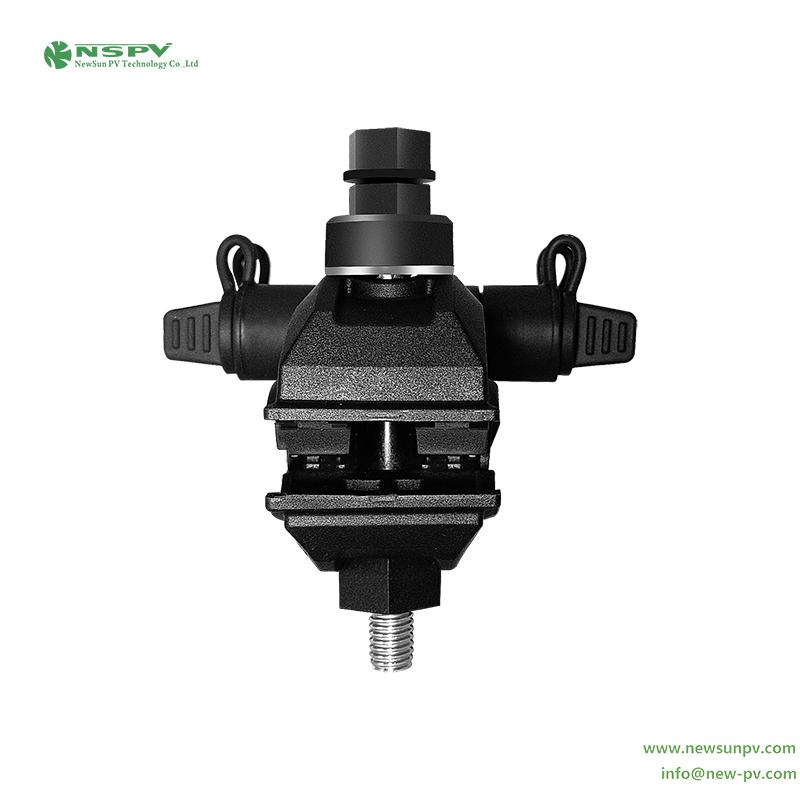

4in1 Piercing connector(IPC4116120)
Product Specifications
Insulation material: PA+CU
Safety degree: II
Rated voltage:1500VDC/1000VAC
Flame class:UL94-V0
Suitable cable cross sections:Tap:2.5~16mm2 (OD Max.9.0) / Main:10-120mm2 (Al/CU)
Installation type: Outdoor, UV resistant(F1)
Contact resistance:≤ 5 mΩ
Ambient temperature range:-40℃…+85℃(IEC）
Contact material: Copper, Tin plated
Connecting system: Lock connection
Degree of protection:IP67
Nut cap locking force:>12Nm
Overvoltage category/Pollution degree: CATIII/2
Upper limiting temperature:110℃(IEC)
