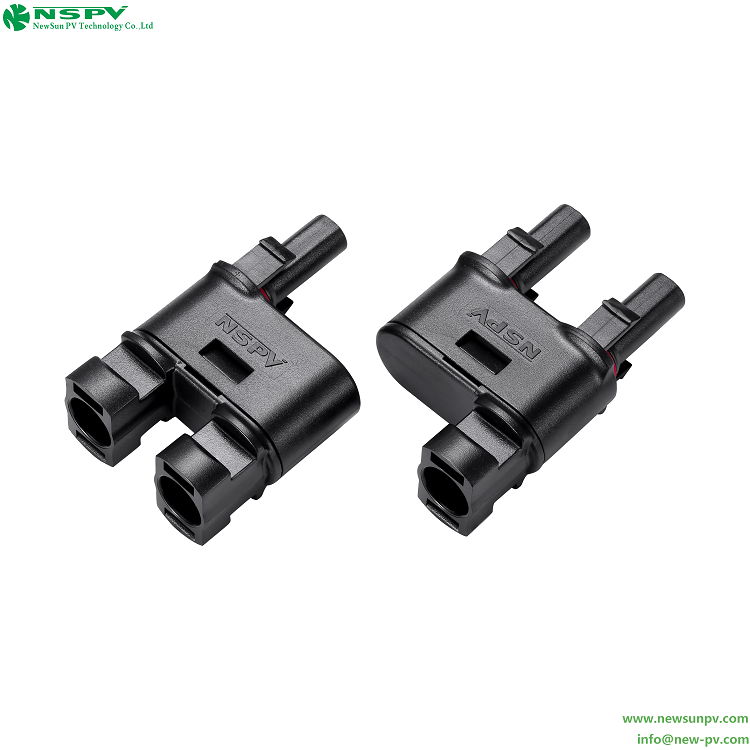

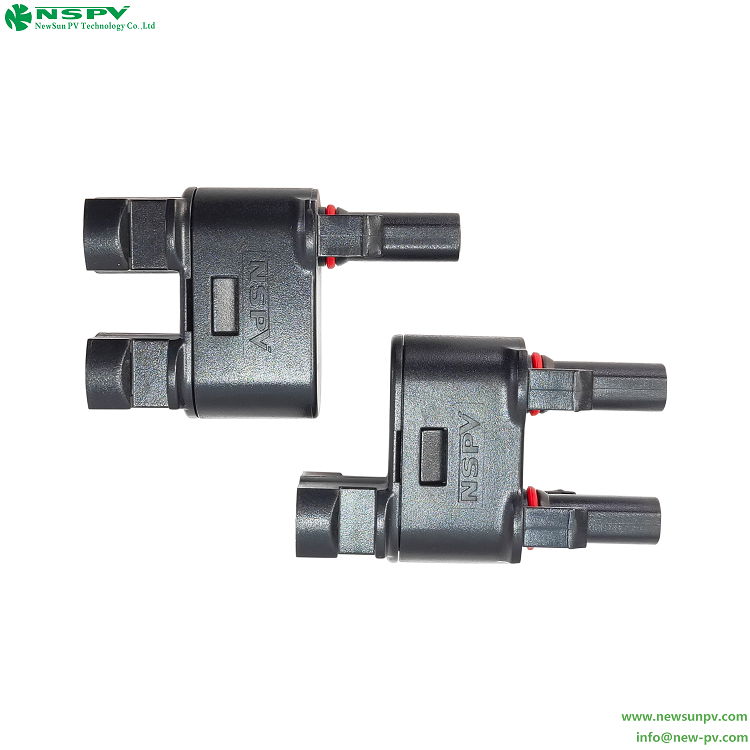

Solar 1500VDC 2in1 T branch connector Features
1500VDC, 35A; IP68; Low contact resistance; Suitable for 2.5-10sqmm solar cable; TUV certified
Please inquiry for details and prices vary from different branch.

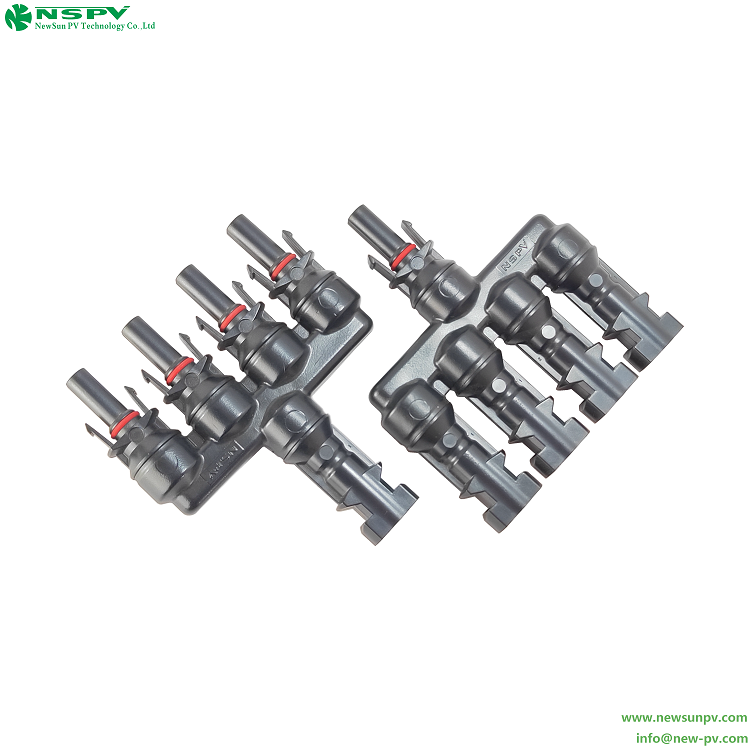

1500VDC PV4.0 Solar Branch Connector 2/3/4 to 1
| Product specifications |
2 to 1 |
3 to 1 |
4 to 1 |
| Insulation material |
PPE |
PPE |
PPE |
| Rated current |
35A |
35A |
35A |
| Rated voltage |
1500VDC |
1500VDC |
1500VDC |
| Test voltage |
8kV(50Hz,Imin) |
8kV(50Hz,Imin) |
8kV(50Hz,Imin) |
| Contact resistance |
≤0.25mΩ |
≤0.35mΩ |
≤0.35mΩ |
| Contact material |
Copper,Tin plated |
Copper,Tin plated |
Copper,Tin plated |
| Degree of protection |
IP68(1m,1H) |
IP68(1m,1H) |
IP68(1m,1H) |
| Overvoltage category/Pollution degree |
CATIII/2 |
CATIII/2 |
CATIII/2 |
| Safety degree |
II |
II |
II |
| Flame class |
UL94-V0 |
UL94-V0 |
UL94-V0 |
| Ambient temperature range |
-40℃…+85℃(IEC) |
-40℃…+85℃(IEC) |
-40℃…+85℃(IEC) |
| Suitable cable cross sections |
2.5~6mm² /14~8AWG |
2.5~10mm² /14~8AWG |
2.5~10mm² /14~8AWG |
| Connecting system |
- |
Crimp connection |
Crimp connection |
| Upper limiting temperature |
110℃(IEC) |
110℃(IEC) |
110℃(IEC) |
| Rated Impulse voltage |
16kV |
16kV |
16kV |
Feature
Easy to install
Small size
Matching MC4 /EVO connector
